IMPCO LH200M 2 2 Air Valve Mixer Fuel System Parts

Name: IMPCO LH200M 2 2 Air Valve Mixer Fuel System Parts
Brand: IMPCO
Price: 1 USD

Brand Name : IMPCO

Model Number : LH200M-2-2

Certification : UL

Place of Origin : USA

MOQ : 24

Price : Depending on quantity

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Product Name : Mixer

Part Number : LH200M-2-2

Brand : IMPCO

Fuel Type : Low Heat

Mounting Position : Vertical

Diaphragm Material : Silicone

Contact Now

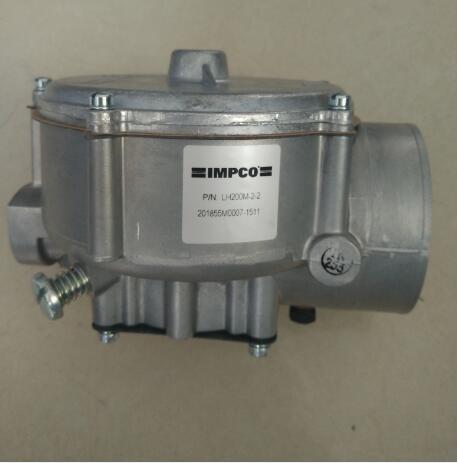

IMPCO Mixer LH200M-2-2, LH Air Valve Version Of 200M-2-2 With Reduced Air Flow

Model LH200M-2-2 is a single diaphragm air-valve mixer, providing a convenient 1/8” balance port at the air inlet. It is available for Low Heat Gas application. LH model mixers' airflow reduced.

SPECIFICATIONS
Fuel Type	LPG Vapor or Natural Gas
Inlet Pressure	-1.5” w.c.
Operating Temperature Range	-40ºC to 121ºC
Mounting Position	Vertical
Diaphragm Material	Hydrin (Standard), Silicone (Optional)
HP/kW Rating	172 hp (128.0 kW) @ 276 CFM (130 L/s) and 1.5” Hg manifold depression 215 hp (160.3 kW) @ 345 CFM (162.8 L/s) and 2.0” Hg manifold depression
