325hp LPG Liquid VFF30 Mechanical IMPCO Lockoff

Name: 325hp LPG Liquid VFF30 Mechanical IMPCO Lockoff
Brand: IMPCO
Price: 1 USD

Brand Name : IMPCO

Model Number : Model VFF30

Certification : UL

Place of Origin : USA

MOQ : 24

Price : Depending on quantity

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Product Name : Lockoff

Part Number : VFF30

Brand : IMPCO

Fuel Type : LPG Liquid

Mounting Position : Vertical

Engine Power : 325 hp

Inlet Pressure : 312psi

Vacuum Activation Pressure : 0.5”w.c.

Contact Now

IMPCO VFF30 ,fuel lockoff , use with LPG Liquid

DESCRIPTION

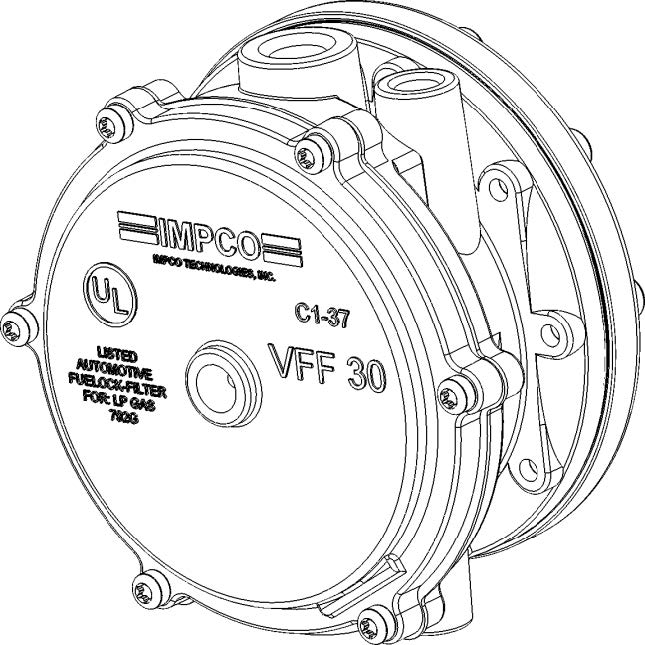

The Model VFF30 is a combination fuel lockoff and filter, engineered for use with LPG Liquid/Vapor or Natural Gas Vapor. It is available with Hydrin, Silicone and Fluorosilicone diaphragms. A pressure of 0.5” w.c. is required to open the lockoff. The VFF30 is suitable for engines up to 325 hp at a maximum working pressure of 312 psi. The extra-large capacity filter element is fully serviceable.

SPECIFICATIONS
Fuel Type	LPG Liquid
Inlet Pressure (Maximum)	312 psi
Flow Rate	26.7 CFM
Operating Temperature Range	40°F to +250°F
Vacuum Activation
Minimum Opening	0.5” w.c.
Fully Opened	11.5” w.c.
Min. Operating Opening	2.0” w.c.
Mounting Position	Vertical
Certification	UL , Inquire for specific ECE approval
