Natural Gas 3.45kPa Inlet FL 50046 002 Shut Off Valve

Brand Name : IMPCO

Model Number : FL-50046-002

Certification : UL

Place of Origin : USA

MOQ : 20

Price : Depending on quantity

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Product Name : Lockoff Valve

Part Number : FL-50046-002

Brand : IMPCO

Fuel Type : Low Pressure Natural Gas

Mounting Position : Vertical (coil up) ±10°

Inlet Pressure : 3.45 kPa

Flow Rate : 350 CFH (9,911 L/H) @ 3.45 kPa (Air)

Electrical Requirement : Nominal - 15.5 Watts @ 12 VDC (1.3 Amps) ; Continuous Use (>20 mins) - 12 Watts @ 12 VDC (1.0 Amp)

Contact Now

IMPCO FL-50046-002 , a low pressure shut-off valve , use with Natural Gas Vapor , male outlet
DESCRIPTION

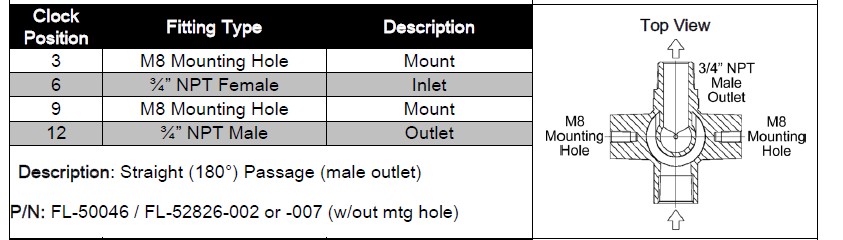

The FL-50046-002 model is a low pressure solenoid valve suitable for use with Natural Vapor.The coil assembly is hermetically sealed for excellent moisture resistance.The valve is available in 180 Deg Flow, Female In, male Out
Natural Gas 3.45kPa Inlet FL 50046 002 Shut Off Valve
SPECIFICATIONS
Fuel Type LPG Liquid/Vapor or Low Pressure Natural Gas
Inlet Pressure (Maximum) 3.45 kPa
Flow Rate 9,911 L/H@ 3.45 kPa (Air)
Operating Temperature Range -40°C to +121°C
Electrical Requirement
Nominal 15.5 Watts @ 1.3 Amps
Continuous Use (>20 mins) 12 Watts @ 1.0 Amp
Operating Opening -40°C to 105°C
Mounting Position Vertical (Coil Up) ±10°
Certification UL Recognized, Inquire for specific ECE approval

Natural Gas 3.45kPa Inlet FL 50046 002 Shut Off Valve

Natural Gas 3.45kPa Inlet FL 50046 002 Shut Off Valve

Natural Gas 3.45kPa Inlet FL 50046 002 Shut Off Valve
