CA55M-500 Fuel System Mixer No Air Horn Throttle Body For Forklifts

Brand Name : IMPCO

Model Number : CA55M-500

Certification : UL

Place of Origin : USA

MOQ : 24

Price : Depending on quantity

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Fuel Type : LPG Vapor or Natural Gas, Bi-Fueled with Gasoline

Operating Temperature Range : -40°F to +250°F (-40°C to +121°C)

HP/KW Rating : Up to 75 hp (55.9 kW) Flow Rate: 118CFM(55.7L/s)

Flow Rate : 118CFM (55.7 L/s)

Inlet Pressure : -1.5” w.c. (-0.37 kPa)

HP/kW Rating : Up to 75 hp (55.9 kW) @ 118 CFM (55.7 L/s) and 2.0” Hg manifold depression

Horsepower : Up to 73 hp (54 kW) @ 118 CFM (55.7 L/s) and 2.0” in Hg manifold depression

Contact Now

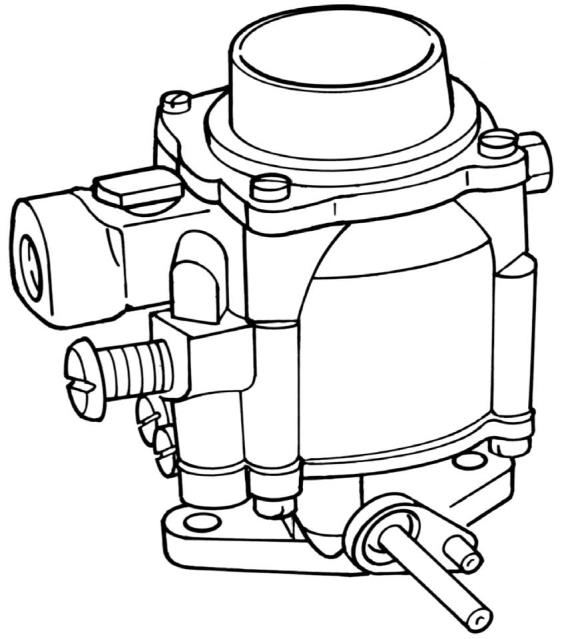

CA55M-500 Mixer No Air Horn Or Throttle Body Common On Forklifts And Small Engines.

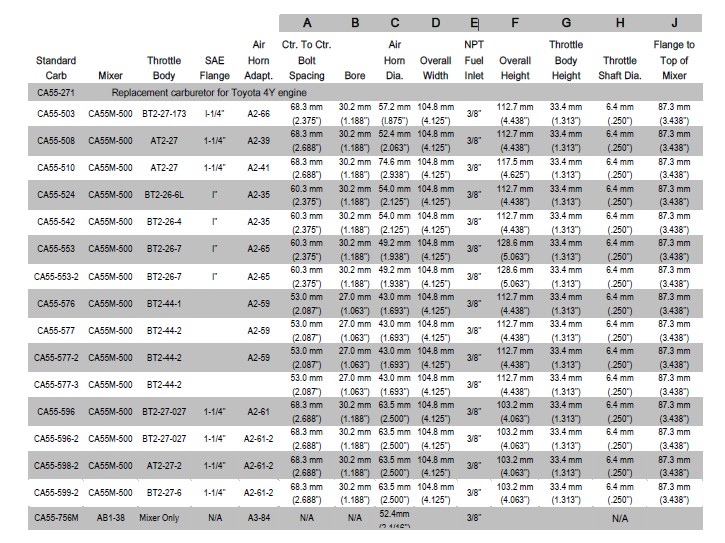

IMPCO CA55-256L Carburetor specifications:

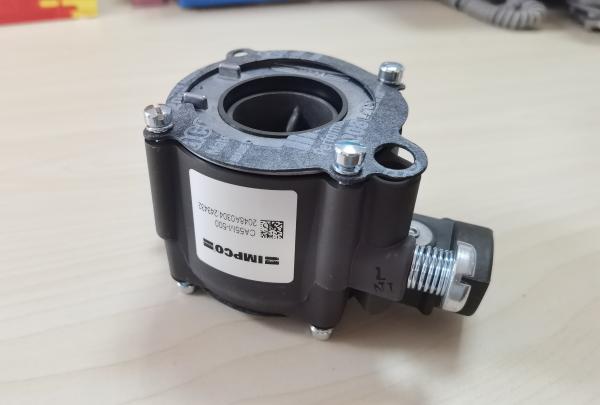

The CA55M-500 mixer no air horn or throttle body. Common on forklifts and small engines. The 4 screws on top and bottom are where your air horn and throttle body mount to, it is more common for the diaphragms in the Propane Carburetor itself to go bad so save your self some time and and money by just replacing the LP Mixer.
DESCRIPTION
SPECIFICATIONS
Fuel Type LPG Vapor or Natural Gas
Inlet Pressure -1.5” w.c. (-0.37 kPa)
Operating Temperature Range -40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position Any
Diaphragm Material N/A
HP/kW Rating Up to 75 hp (55.9 kW) @ 118 CFM (55.7 L/s) and 2.0” Hg manifold depression

If adjustment is needed, follow these steps:

* Set parking brake and block the drive wheels
* Connect a tachometer to engine.
* Accelerate engine to full governed rpm.
* Pull backward on tilt lever until pump reaches hydraulic relief bypass. The rpm should drop according to the spec for hydraulic bypass (typically a 250-500 rpm drop). If the rpm does not drop, check and adjust the hydraulic pressure before you continue.
* Turn the power mixture valve until the highest engine rpm is reached at 0.30 to 0.70 percent carbon monoxide.

CA55M-500 Fuel System Mixer No Air Horn Throttle Body For Forklifts

The idle air fuel mixture is best adjusted only with a engine CO exhaust analyzer and the mixture should be adjusted to 0.30 to 0.70 percent carbon monoxide.

Alternate Method:
* Adjust idle to 400-500 rpm
* Turn idle air screw out until engine starts to run rough.
* Turn idle air screw in approximately ¼ turn to ½ turn or until engine smoothes out.
CA55M-500 Fuel System Mixer No Air Horn Throttle Body For Forklifts
CA55M-500 Fuel System Mixer No Air Horn Throttle Body For Forklifts

IMPCO's multidisciplinary engineering team supports customers from concept development through production validation and certification. Our team uses 3D modelling, FEA, and CFD tools for design analysis and utilizes on-site CNC and rapid prototyping. Our validation protocols include in-house corrosion and vibration testing as well as flow characterization and on-engine emissions analysis.
