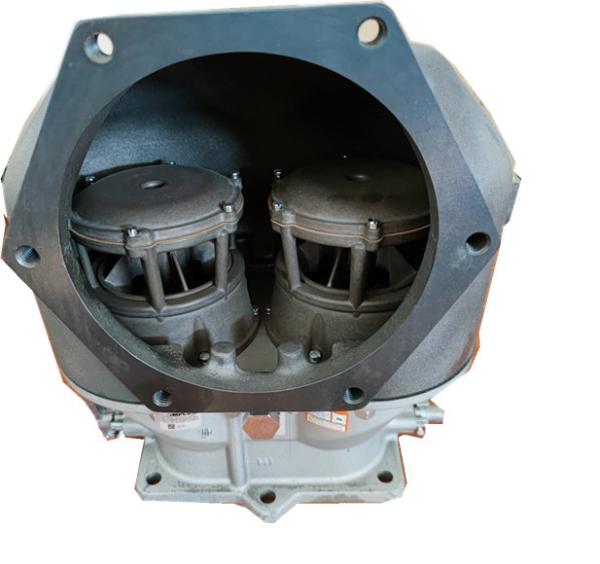

745.7KW Air Mixer Valve

Name: 7457KW Air Mixer Valve
Brand: IMPCO
Price: 1 USD

Brand Name : IMPCO

Model Number : Model 600D-1-2

Certification : UL

Place of Origin : USA

MOQ : 24

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Price : Depending on quantity

Part Description : Carburetor/Mixer

Gas Type : LPG Vapor/ Natural Gas/Landfill Gas/ Digest Gas

Mounting Position : Vertical

HP/KW Rating : 1,000 hp (745.7 kW) @ 1600 CFM (755 L/s)

Contact Now

LPG / Natural Gas / Landfill/ Digest Gas, Concentric Flow Type Air Valve Mixer Up To 745.7 KW , Gas Metering Valve

The Model 600D-1-2 is a concentric flow type air valve carburetor. This mixer is suitable for LPG Vapor,Natural Gas, Landfill and Digester gases for applications requiring up to 1600 CFM.The air/fuel ratio is controlled by the adjustable power valve, jet, shape of the gas metering valve and the pressure from the gas regulator.

SPECIFICATIONS
Fuel Type
LPG Vapor	90% + Propane
Natural Gas	85% + Methane
Digester Gas	56-72% Methane
Landfill Gas	45-56% Methane
Inlet Pressure	+5.0” w.c. (1.24 kPa) over Air Inlet (Idle Setting)
Operating Temperature Range	-40°F to +250°F (-40°C to +121°C)
Mounting Position	Vertical
HP/kW Rating	1,000 hp (745.7 kW) @ 1600 CFM (755 L/s) and 2.0” Hg manifold depression
